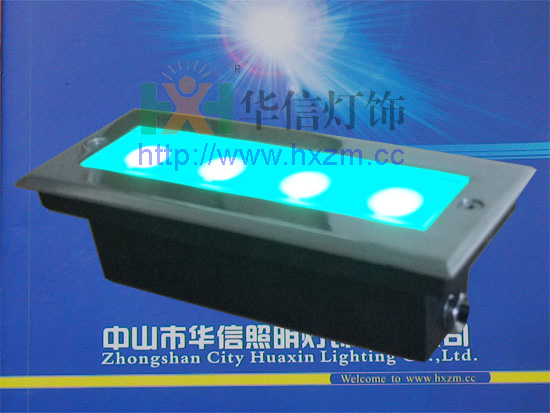

Name: HX-M-05 (4W long buried lamp)

Explain：

Lamp body size: 200*80*60mm

Light body material: die cast aluminum, stainless steel surface, grinding glass, stainless steel screws

Light body features: LED dedicated underground lamp body, rectangle, suitable for more occasions to use, beautiful appearance, strong and durable

PCB material: high thermal conductivity aluminum substrate

Light source: high brightness LED

LED number: 4 (high power 1W/)

LED chip: Taiwan epstar chip

Flux value: 320 lumens (Lv Guang)

Service life: more than 40 thousand hours (maintenance free)

Drive mode: built in isolation type constant current drive

Power factor: 0.9

Use voltage: AC220V (can be customized low voltage 24V)

Power: 4W

Energy efficiency: more than 75%

Light emitting color: green (can be customized red, yellow, blue, green, white, warm white, color and other colors)

Projection height: 8 meters (30 degrees)

Light emitting angle: 15 degree -60

Lens material: optical PMMA

Installation: mosaic buried installation

Protection level: IP67 (waterproof, suitable for outdoor)

Applicable temperature: ~+60 C -30 C

Features: high efficiency and energy saving, high brightness LED buried lights, no UV, no flicker, no light pollution. Pure color, solid light source, not afraid of vibration, impact and fall, etc.. Aluminum shell, stainless steel, acid resistance and alkali resistance, high resistance to ultraviolet radiation. Isolated constant current drive, long service life. Easy to install and debug. Maintenance free during use.

Application: suitable for outdoor environment, waterproof and dust. Applied to floor column lighting, city square, pedestrian street, parking lot, park, stage lighting, landscape lighting, road lighting, trees, green belt and lighting.
